OCZ 650W ZS Series ATX Power Supply

      you are here: OCZ PC Components Power Supplies OCZ 650W ZS Series ATX Power Supply

OCZ
more products

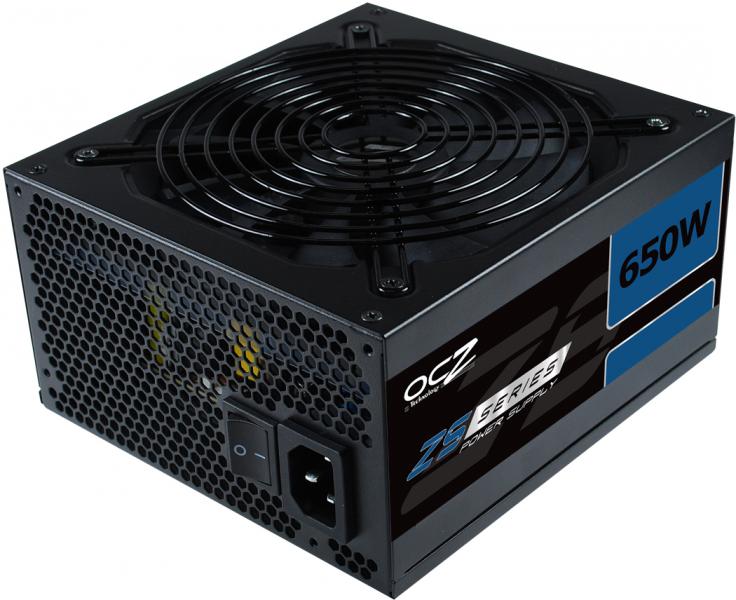

OCZ 650W ZS Series ATX Power Supply
650W OCZ power supply, from the OCZ ZS PSU Series. Non-modular PSU with a range of connectors, standard ATX format, and backed by OCZ's 3-year Power Swap warranty.
77.10

Item Number: 12354
Mfr. PN: OCZ-ZS650W-UK
Shipping weight: 5.84 lbs
1 in stock now
Same day shipping available!

Calculate shipping cost
Earn 300 MemoryPoints on this product
Customer Reviews
Be the first to add a review.

or



Compare this product to:
Reviews of memoryc.com








DETAILS

The OCZ ZS Series PSU is an affordable solution for driving today's value-oriented gaming systems, and can power both NVIDIA® SLI™ and ATI CrossFireX™ modes with an array of connectors. With the ideal combination of stability and sleek design, ZS is designed with gamers and modders in mind, sporting a compact form factor for compatibility with a range of case designs.

Available in 550W to 750W configuration and backed with OCZ’s 3-year Power Swap warranty, the ZS Series PSU gives you peace of mind to ensure stability, low noise, and efficiency of your home gaming system.

Features:

- Single +12V Rail
- Continuous output rated at 40°C
- 150 x 160 x 86mm (W x L x H)
- ATX12V v2.2 and EPS12V
- Non-Modular
- High Efficiency: 85% at typical load, meets 80+ Bronze standards
- Overvoltage/Overcurrent/Short-Circuit protection
- Active PFC
- MTBF: 100,000 hours
- 135mm temperature and load controlled double ball-bearing fan
- 3 year warranty backed by OCZ's exclusive PowerSwap Warranty

SPECIFICATIONS

POWER PROVIDED 650W
FORM FACTOR PC ATX
MTBF 100,000 hours
INPUT VOLTAGE 230VAC
OUTPUT CONNECTORS 1 x 20+4-pin ATX
1 x 4+4-pin 12V ESP/CPU
1 x 6-pin, 1 x 6+2-pin PCIe
3 x 4-pin peripheral
8 x 5-pin SATA
VOLTAGE PROVIDED +3.3V (22A)
+5V (22A)
+12V (38A)
-12V (0.3A)
+5VSB (3A)
FANS 135mm temperature and load controlled double ball-bearing fan
FEATURES Single +12V Rail
Continuous output rated at 40°C
High Efficiency: 85% at typical load, meets 80+ Bronze standards
DIMENSIONS 150mm x 160mm x 86mm
WEIGHT 1.7kg
WARRANTY 3 years OCZ Power Swap Warranty
