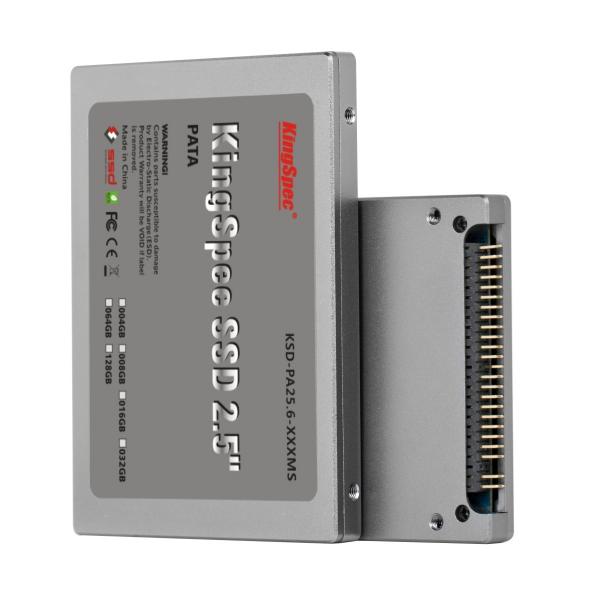

16GB KingSpec 2.5-inch PATA/IDE SSD Solid State Disk (MLC Flash) SM2236 Controller

16GB 2.5-inch SSD from KingSpec with PATA/IDE interface. Built using MLC Flash chips, with read speeds up to 100MB/sec and write speeds up to 30MB/sec. IDE 44-pin interface and SM2236 controller.
$ 39.00USD39.00

Item Number: 12947
Mfr. PN: KSD-PA25.6-016MS
Shipping weight: 0.57 lbs
31 In stock now
Available to ship 22-Sep-2014

Calculate shipping cost
Earn 150 MemoryPoints on this product
Customer Reviews
Be the first to add a review.

or



Compare this product to:



DETAILS

16GB 2.5-inch SSD Solid State Disk from KingSpec with PATA/IDE interface. Built using MLC Flash chips, with read speeds up to 100MB/sec and write speeds up to 30MB/sec.

Computer connection is the IDE 44-pin interface, making this SSD compatible with notebook and netbook computers using 2.5-inch IDE hard drives.

This IDE/PATA SSD is enclosed in a strong steel case for added durability and reliability.

This SSD is pre-tested in the following systems but is also suitable for use in many other systems. We recommend checking with the manufacturer prior to purchase:

IBM: ThinkPad T/42/T43/T20/T40
DELL: Inspiron 8600, Inspiron 8200, Inspiron 5160, Inspiron 600m
Fujitsu: U1010, U2010, U810, U820, P1620

SPECIFICATIONS

CAPACITY 16GB
INTERFACE TYPE IDE/PATA - 44 pin interface
FORM FACTOR 2.5-inch
DEVICE TYPE SSD Solid State Disk
DATA TRANSFER RATES Read speed up to 100MB/sec
Write speed up to 30MB/sec
FLASH STORAGE DETAILS MLC NAND Flash chips
DIMENSIONS 100.2 x 69.8 x 9.5 mm
WEIGHT 70g
SYSTEM REQUIREMENTS IDE 44-pin interface
OPERATING TEMPERATURE Operating Temperature 0~70ºC
Non-operating Temperature -45~85ºC
MTBF 1,000,000 hours
SHOCK RESISTANCE 2,000G (@0.3ms half sine wave)
SPECIAL FEATURES Supports BCH ECC 8bits or 15bits in 512 bytes
PACKAGING Retail packaging
WARRANTY 2 years manufacturers warranty
