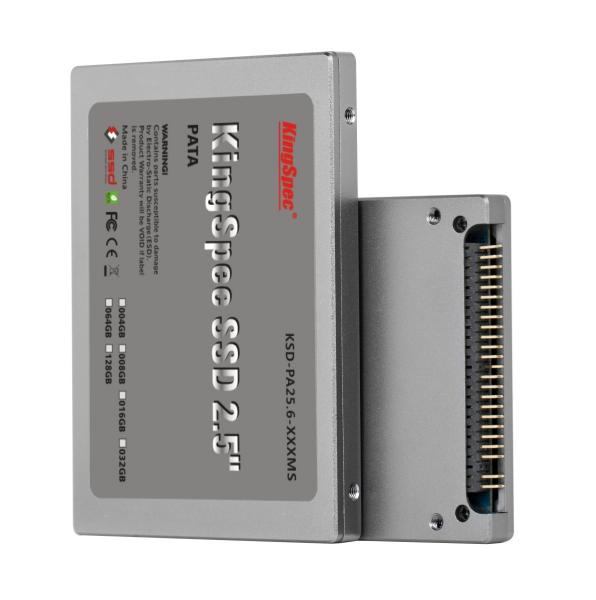

32GB KingSpec 2.5-inch PATA/IDE SSD Solid State Disk (MLC Flash) SM2236 Controller

32GB 2.5-inch SSD from KingSpec with PATA/IDE interface. Built using MLC Flash chips, with read speeds up to 105MB/sec and write speeds up to 31MB/sec. IDE 44-pin interface and SM2236 controller.
$ 47.63USD47.63

Item Number: 12946
Mfr. PN: KSD-PA25.6-032MS
Shipping weight: 0.57 lbs
32 In stock now
Available to ship 27-Oct-2014

Calculate shipping cost
Earn 188 MemoryPoints on this product
Customer Reviews
5
from 2 votes
Read them or add yours.

or



Compare this product to:



DETAILS

32GB 2.5-inch SSD Solid State Disk from KingSpec with PATA/IDE interface. Built using MLC Flash chips, with read speeds up to 105MB/sec and write speeds up to 31MB/sec.

Computer connection is the IDE 44-pin interface, making this SSD compatible with notebook and netbook computers using 2.5-inch IDE hard drives.

This IDE/PATA SSD is enclosed in a strong steel case for added durability and reliability.

This SSD is pre-tested in the following systems but is also suitable for use in many other systems. We recommend checking with the manufacturer prior to purchase:

IBM: ThinkPad T/42/T43/T20/T40
DELL: Inspiron 8600, Inspiron 8200, Inspiron 5160, Inspiron 600m
Fujitsu: U1010, U2010, U810, U820, P1620

SPECIFICATIONS

CAPACITY 32GB
INTERFACE TYPE IDE/PATA - 44 pin interface
FORM FACTOR 2.5-inch
DEVICE TYPE SSD Solid State Disk
DATA TRANSFER RATES Read speed up to 105MB/sec
Write speed up to 31MB/sec
FLASH STORAGE DETAILS MLC NAND Flash chips
DIMENSIONS 100.2 x 69.8 x 9.5 mm
WEIGHT 70g
SYSTEM REQUIREMENTS IDE 44-pin interface
OPERATING TEMPERATURE Operating Temperature 0~70ºC
Non-operating Temperature -45~85ºC
MTBF 1,000,000 hours
SHOCK RESISTANCE 2,000G (@0.3ms half sine wave)
SPECIAL FEATURES Supports BCH ECC 8bits or 15bits in 512 bytes
PACKAGING Retail packaging
WARRANTY 2 years manufacturers warranty



USER REVIEWS

These are reviews added by our customers. If you own this product please add your review to help other customers make up their mind.
Great for old laptop
I wanted to get rid of the noise in my old laptop and prepare it for my kids with an HDD that was running in it for 10 years. So I looked up the right interface and a good price for a SSD. My old laptop is a Compaq/HP EVO 610 N. It was not easy to change the HDD. First one screw I had to be hammered out of the HDD cage because it was stuck and the head was too soft to get s screwdriver to remove it. And then I found that the 2 front screws for the adapter cage are slightly smaller so then can slide deeper into the slot, then the 2 srews in the back. I upgraded the RAM also to 1GB and then installed Edubutu for the kids to use for fun and practise. Adding accounts to Edubuntu is fun too(via commandline only). The drive can now not be heard anymore as it is a SSD and I dont have to worry about it being dropped either ;) The laptop had initially WinXP installed...
So if you have an old PATA/IDE laptop or even desktop that is wasting your space at home - try this alternative drive and make use of it...

Andreas Luedicke
December 2nd 2013
Great speed
It's my first time using SSD, and considering it's a IDE I had my doubts about it. I installed it on an older laptop, a P4 with only 512MB of RAM, which came originally with a 40GB IDE hdd. Now it works much faster than it ever did before.
This user purchased this item from us.

Telmo Dias
October 28th 2013
PAGE   1
Viewing 1-2 out of 2 user reviews.
