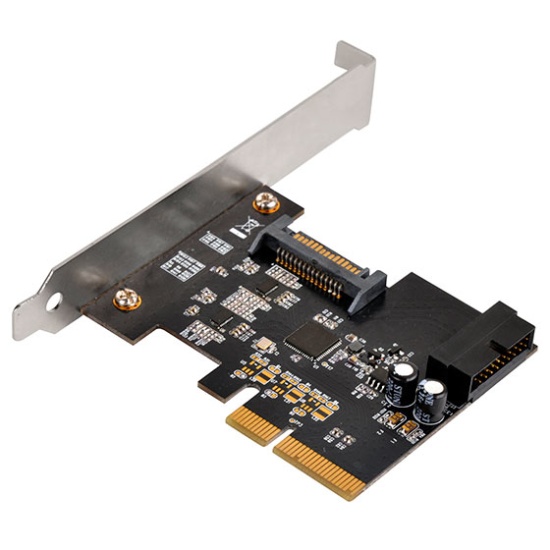

Silverstone ECU04-E interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) by Silverstone
- Be the first to review
- Item Number: FD2256095
- Part Number: SST-ECU04-E
|
Ships in 12 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Includes ReDriver ASIC chips for overcoming 1 meter cable length limitation*
- Includes USB 3.1 internal 19pin connector
- PCI-E Gen 2.0 x2, throughput up to 10Gbps
- Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0
- Includes optional low profile slot cover for supporting low profile cases
Details
The SilverStone ECU04-E is a PCI-E Gen 2.0 x2 expansion card with one internal 19pin USB 3.1 connector (supporting two ports). It adds two redriver chips over the original ECU04 design for vastly improved performance over longer cable connections. This ensures dual 10Gbps bandwidth transfer rate can be maintained for up to 2 meters* compared with just 1 meter per USB 3.1’s specified limitation. The ECU04-E is also backwards compatible with USB 3.0/2.0/1.1 and supports UASP (USB Attached SCSI Protocol) for enhanced performance. For operating systems with XHCI (eXtensible Host Controller Interface), the ECU04-E will easily install without the need for any drivers because it also supports XHCI. For those looking to upgrade or add additional USB 3.1 ports or devices to their computer, the ECU04-E is a great starting point.
