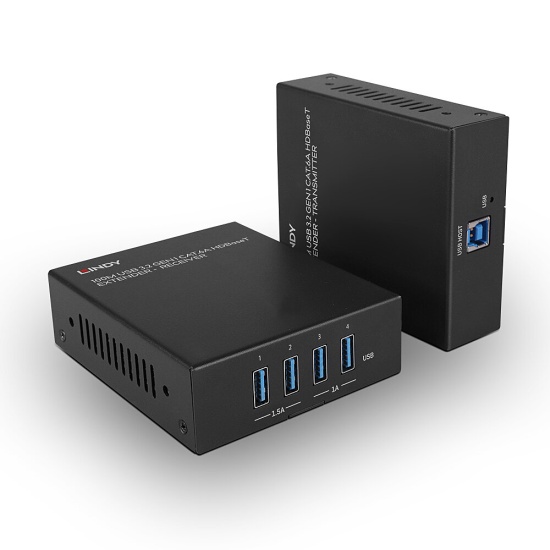

Lindy 100m USB 3.2 Gen 1 Cat.6A HDBaseT Extender by Lindy
- Be the first to review
- Item Number: FD3543264
- Part Number: 43410
|
Ships in 4 days Free shipping to New York, NY! Free returns for any reason |
.png){kind=logo}
Key Features
- Extend 4 USB 3.2 Gen 1 ports up to 100m using Cat.6A network cable (not included)
- Power over Cable requires a single power supply to be connected to the transmitter or receiver only
- Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports
- Plug & Play installation
Similar Products
-
Black Box KVM Extender Transmitter Receiver
IN STOCK
$ 2,642.56 -
Tripp Lite Cat5e KVM Console Extender Kit
IN STOCK
$ 286.01 -
Tripp Lite Net Commander PS2 Server Interface Unit
IN STOCK
$ 106.76 -
Black Box 4-Port Rack Accessory Mounting Kit
IN STOCK
$ 52.62
Details
Specifications
- USB Standard: USB 3.2 Gen 1
- Supported Bandwidth: 5Gbps
- Maximum Distance: 100m (328.08ft)
- Transmission Medium: Cat.6A or higher network cable
- Chipset: VS6320
- Special Features: Power over Cable, supports FSYNC, RS232, control, bulk, interrupt and isochronous data transfer
Connectors
- Transmitter Input: USB 3.0 Type B (Female)
- Transmitter Output: RJ45 (Female)
- Receiver Input: RJ45 (Female)
- Receiver Output: 4 x USB Type A (Female)
- Control Ports: RS-232 4-Pin Terminal Block
- Power: 5.5/2.1mm DC socket
Physical Properties
- Dimensions WxDxH: 100x85x30mm (3.94x3.35x1.18in) each unit
- Housing Material: Metal
- Net Weight: 0.86kg (1.9lb)
- Operating Temperature: 0° - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 0 - 90% RH (non-condensing)
- Power Requirements: 24VDC 2A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 235x150x80mm (9.25x5.91x3.15in)
- Gross Weight: 1.07kg (2.36lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65
Package Contents
- Transmitter unit
- Receiver unit
- 1m USB 3.2 Gen 1 Type A Male to B Male cable
- 2 x 4-Pin Terminal Block
- Multi-Country Power Supply (EU, UK, US & AUS)
- Mounting brackets & screws
- Lindy Manual
Purchasing Information
- No.: 43410
- EAN: 4002888434102
