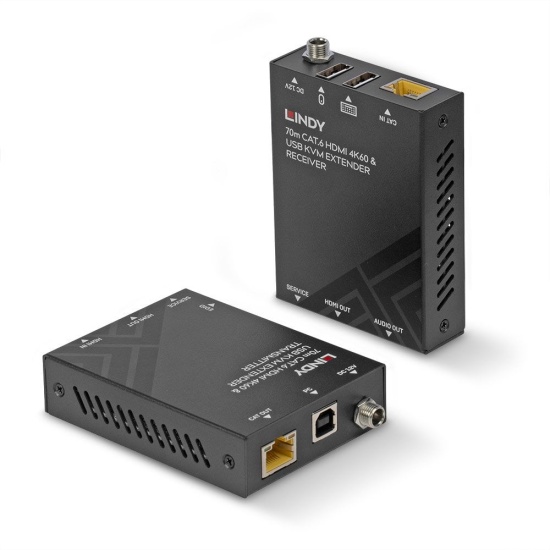

Lindy 70m Cat.6 HDMI 4K60, USB and Audio KVM Extender by Lindy
- Be the first to review
- Item Number: FD3542273
- Part Number: 39383
|
Ships in 11 days Free shipping to New York, NY! Free returns for any reason |
.png){kind=logo}
Key Features
- Extends HDMI and USB HID signals up to 70m using a single Cat.6 cable
- Supports HDMI resolutions up to 4K@60Hz 4:4:4 8bit with HDR
- EDID management and HDMI loop-out port to connect one additional display on the transmitter
- Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
- 2 year warranty
Similar Products
-
Tripp Lite Cat5e KVM Console Extender Kit
IN STOCK
$ 286.01 -
Black Box KVM Extender Transmitter Receiver
IN STOCK
$ 2,642.56 -
Tripp Lite Net Commander PS2 Server Interface Unit
IN STOCK
$ 106.76 -
Black Box 4-Port Rack Accessory Mounting Kit
IN STOCK
$ 52.62
Details
Specifications
- AV Interface: HDMI®
- Interface Standard: 2.0, USB 1.1
- Supported Bandwidth: 18Gbps
- Maximum Distance: 70m (229.66ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: DIP-switch with copy function and presets
- Supported Audio: HDMI® Audio Pass-through
- Separate Audio Ports: 3.5mm
- IR Support: -
- CEC Support: -
- Serial Interface: -
- Transmission Protocol: -
- Transmission Medium: 1 x Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Special Features: HDMI® Loop Out Port, PoC (Power over Cable), Audio de-embedding
Connectors
- Transmitter Input: HDMI® Type A (Female), USB Type B (Female)
- Transmitter Output: RJ-45 (Female), HDMI® Type A (Female)
- Receiver Input: RJ-45 (Female)
- Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female), 3.5mm Audio (Female)
- Bi-directional Ports: -
- Power: 5.5/2.1mm
Physical Properties
- Dimensions (approx.) WxDxH: 90x68x22mm (3.54x2.68x0.87in) per unit
- Housing Material: Metal
- Net Weight: 0.56kg (1.23lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 12VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 215x135x75mm (8.46x5.31x2.95in)
- Gross Weight: 0.74kg (1.63lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- Transmitter
- Receiver
- USB Type A Male to Type B Male cable, 1.5m
- 4 x Mounting Ears with screws
- Multi-country Power Supply (UK, EU, US & AUS)
- Lindy Manual
Purchasing Information
- No.: 39383
- EAN: 4002888393836
