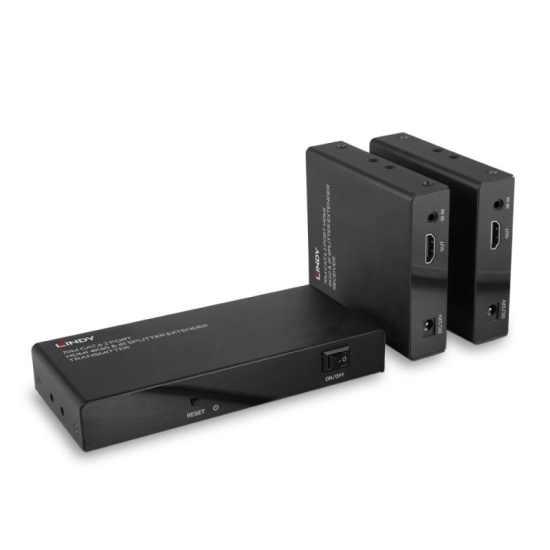

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender by Lindy
- Be the first to review
- Item Number: FD3541749
- Part Number: 38385
|
Ships in 10 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Distribute 4K HDMI signals to up to 2 displays in multiple locations
- Supports resolutions up to 4K@60Hz, with additional support for HDR
- Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs
- Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation
See product description
Details
Specifications
- AV Interface: HDMI®
- Supported Bandwidth: 18Gbps as specified in 2.0 specifications
- Maximum Distance: 70m (229.66ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID management: default 4K60, downscale function to Full HD, copy function from loop-out port
- Supported Audio: LPCM 2CH, up to 5.1 copying EDID from loop out port
- Separate Audio Ports: -
- IR Support: 20-60KHz
- CEC Support: -
- Serial Interface: -
- Transmission Protocol: -
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: GSV2006 & GSV5100
- Special Features: PoC (Power over Cable)
Connectors
- Transmitter Input: HDMI® Type A (Female)
- Transmitter Output: 2 x RJ-45 (Female), HDMI® Type A (Female), 3.5mm IR (Female)
- Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Output: HDMI® Type A (Female)
- Bi-directional Ports: -
- Power: 5.5/2.1mm
Physical Properties
- Dimensions (approx.) WxDxH: Transmitter: 154x103x23mm (6.06x4.06x0.91in), Receiver: 100x88x23mm (3.94x3.46x0.91in)
- Housing Material: Metal
- Net Weight: Transmitter: 0.263kg (0.58lb), Receiver: 0.199kg (0.44lb)
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- Storage Temperature: -10°C - 80°C (14°F - 176°F)
- Humidity: 5 - 90% RH (non-condensing)
- Power Requirements: 12VDC 2A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 292x238x55mm (11.5x9.37x5.47in)
- Gross Weight: 1.18kg (2.6lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Package Contents
- 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender
- 2 x Receivers
- IR Emitter Cable, 1.2m
- 2 x IR Receiver Cable, 1.2m
- 2 x Transmitter Mounting Brackets & Screws
- 4 x Receiver Mounting Brackets & Screws
- Multi-country Power Supply (UK, EU, US & AUS)
- Lindy Manual
Purchasing Information
- No.: 38385
- EAN: 4002888383851
Specifications
| MAXIMUM RESOLUTION | 3840 x 2160 pixels |
| MAXIMUM TRANSFER DISTANCE | 70 m |
| BANDWIDTH | 18 Gbit/s |
| MATERIAL | Metal |
| COLOUR | Black |
