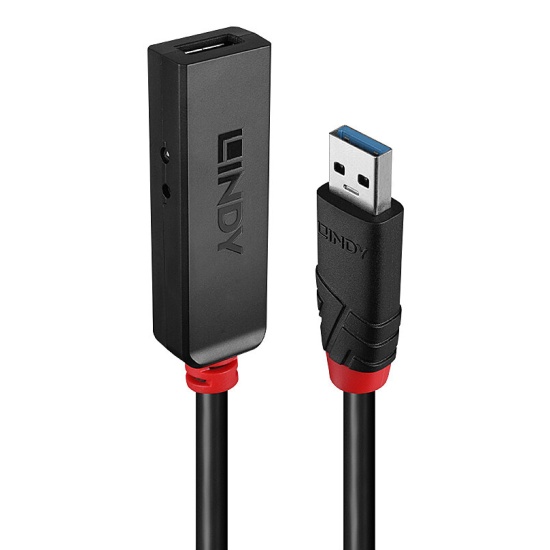

Lindy 3m USB 3.0 Active Extension Slim by Lindy

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: 2.5/0.7mm DC Connector
• Housing Material: PVC
• Connector Plating: Nickel plated
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • USB A Male: 41.1x16.5x9.5mm (1.61x0.64x0.37in)
  • USB A Female: 67.5x22x13.5mm (2.65x0.86x0.53in)

Cable Construction

• Length:  3m (9.84ft)
• Standard: USB 3.2 / 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 6.5mm (0.26in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26AWG+26AWG+21AWG
• Shielding: 75% Tinned Copper

Specifications

• Supported Bandwidth: 5 Gbps
• Nominal Attenuation: <23.0Db@2.5GHz (USB 3.0), <5.8Db@200MHz (USB 2.0)
• Minimum Bend Radius: 80mm (3.14in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 236x255mm (9.29x10.04in)
• Net Weight: 0.26kg (0.58lb)
• Gross Weight: 0.3kg (0.66lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65

Packaging Content

• 3m USB 3.0 Active Extension Slim
• 1.5m USB Type A to 2.5mm DC Cable (max. 5V 1A)

Purchasing Information

• No.: 43400
• EAN: 4002888434003

This product is also available in other lengths

• 43400 - 3m (9.84ft)
• 43401 - 5m (16.4ft)
• 43402 - 8m (26.25ft)
• 43403 - 10m (32.81ft)
• 43404 - 15m (49.21ft)
