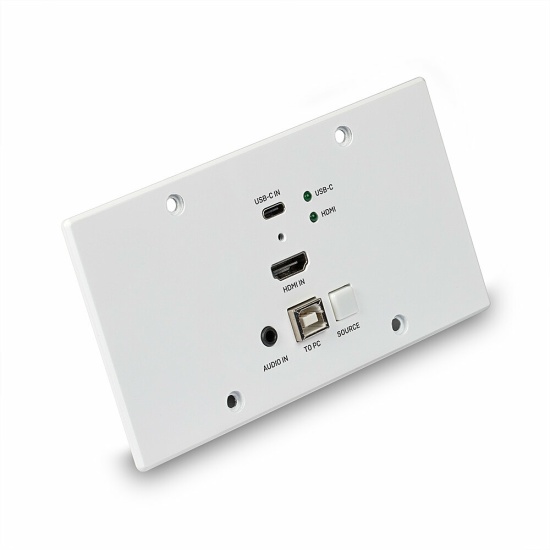

Lindy 150m Cat.6 HDMI 4K60 & Type C HDBaseT EU Wall Plate KVM Extender, Transmitter by Lindy
- Be the first to review
- Item Number: FD3541771
- Part Number: 38388
|
Ships in 10 days Free shipping to New York, NY! Free returns for any reason |
.png){kind=logo}
Key Features
- Sends HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT technology with Long Reach mode
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- Supports USB 2.0, Audio, RS-232, bi-directional IR and PoC (Power over Cable)
- EU standard 2-gang wall plate (15x8cm)
Similar Products
-
Tripp Lite Net Commander PS2 Server Interface Unit
IN STOCK
$ 106.76 -
Black Box 4-Port Rack Accessory Mounting Kit
IN STOCK
$ 52.62 -
Black Box KVM Extender Transmitter Receiver
IN STOCK
$ 2,642.56 -
Tripp Lite Cat5e KVM Console Extender Kit
IN STOCK
$ 286.01
Details
Specifications
- AV Interface: HDMI®, Type C
- Interface Standard: 2.0, USB 2.0
- Supported Bandwidth: HDMI® 18Gbps, USB Type C 5.4Gbps
- Maximum Distance:
- 90m (295.28ft) - 3840x2160@60Hz 4:4:4 8bit (STD)
- 150m (492.12ft) - 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit (LRM) - Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: Dip-switch with presets and copy function
- Supported Audio: Pass Through
- Separate Audio Ports: 3.5mm
- IR Support: 20 - 60KHz
- CEC Support: -
- Serial Interface: RS-232 Pass Through
- Transmission Protocol: HDBaseT 2.0
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS2010
- Special Features: Bi-directional IR, PoC (Power over Cable) with On/Off switch, Audio embedded, Long Reach Mode
Connectors
- Transmitter Input: HDMI® Type A (Female), USB Type C (Female), USB Type B (Female), 3.5mm Audio (Female), IR 3-pin Terminal Block
- Transmitter Output: RJ-45 (Female), IR 3-pin Terminal Block
- Receiver Input: -
- Receiver Output: -
- Bi-directional Ports: RS-232 3-Pin Terminal Block
- Power: 2-Pin Terminal Block DC connector
Physical Properties
- Dimensions (approx.) WxDxH: 152x33.5x81mm (5.98x1.32x3.19in)
- Housing Material: Metal
- Net Weight: 0.42kg (0.93lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: White plate
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 172x98x133mm (6.77x3.86x5.24in)
- Gross Weight: 0.58kg (1.28lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- Transmitter
- Multi-country Power Supply (UK, EU, US & AUS)
- 2x 3-Pin Terminal Block
- 2x 2-Pin Terminal Block
- Lindy Manual
Purchasing Information
- No.: 38388
- EAN: 4002888383882
