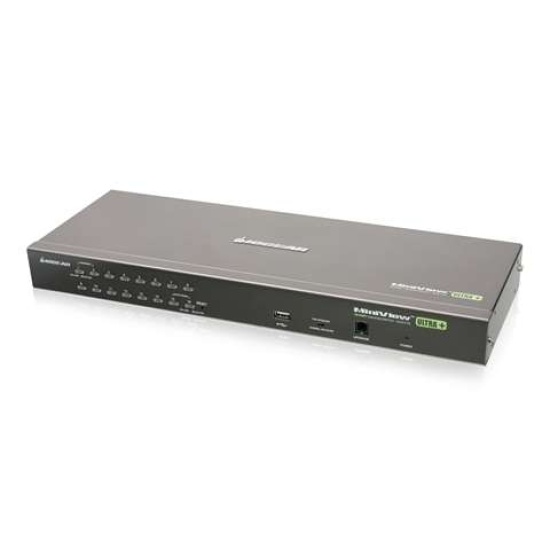

iogear 16-Port USB PS/2 Combo KVM switch Black by IOGEAR
- Be the first to review
- Item Number: FD439873
- Part Number: GCS1716
|
Ships in 7 days Free shipping to Seattle, WA! Free returns for any reason |
.png){kind=logo}
Key Features
- Black
- Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2
- 2048 x 1536 pixels
See product description
Similar Products
-
StarTech.com 2 Port Hybrid USB-A + HDMI/USB-C 4K KVM Switch
IN STOCK
$ 71.45 -
Iogear 4 Port KVM Switch - Black
IN STOCK
$ 373.45 -
StarTech Single Port VGA KVM with 17 Inch LCD Monitor for Server Rackmount KVM Console
IN STOCK
$ 1,013.19 -
Black Box KVM Switch
IN STOCK
$ 1,293.14 -
Trendnet 8-Port USB/PS/2 Rack Mount KVM Switch
IN STOCK
$ 197.88 -
StarTech 2 Port DisplayPort KVM Switch
IN STOCK
$ 403.68 -
Aten 16 Port USB3.0 4K KVM Switch - Black
IN STOCK
$ 1,695.36 -
Tripp Lite 4 Port HDMI to DisplayPort Dual Monitor Secure KVM Switch
IN STOCK
$ 945.15 -
Black Box KVM Extender Transmitter & Receiver
IN STOCK
$ 746.87 -
IOGEAR 2 Port 4K Dual View KVMP Switch with HDMI
IN STOCK
$ 468.07 -
Tripp Lite 2-Port Desktop Compact USB KVM Switch
IN STOCK
$ 80.40 -
Tripp Lite NetDirector 8 Port 1U Rack Mount Console KVM Switch
IN STOCK
$ 1,952.64 -
Aten 4 Port USB3.0 4K Displayport Triple Display KVM Switch - Black
IN STOCK
$ 981.01 -
Tripp Lite NetController 8-Port 1U Rack-Mount Console KVM Switch - with 19in LCD
IN STOCK
$ 1,828.82 -
Tripp Lite 4-Port DVI Dual-Link USB KVM Switch with Audio and Cables
IN STOCK
$ 303.24
Details
The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
Specifications
| PORTS | 16 |
| VIDEO RESOLUTION | 2048 x 1536 pixels |
| KEYBOARD PORT | USB, PS/2 |
| MOUSE PORT | USB, PS/2 |
| CONNECTIVITY | Wired |
| COLOR | Black |
| DIMENSIONS | 466.7 x 142.9 x 244.4 mm |
