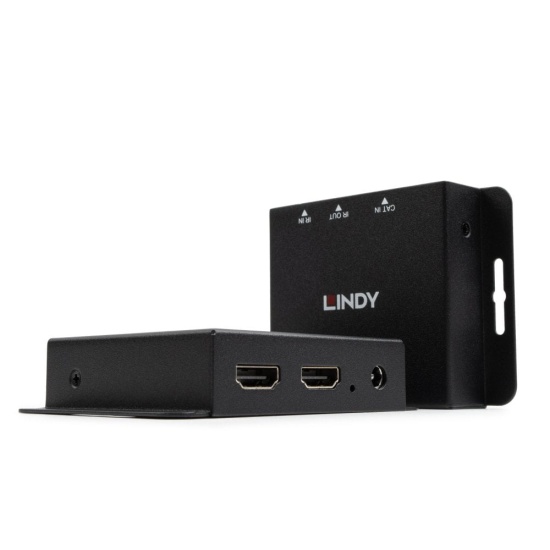

Lindy 50m Cat.6 HDMI & IR Extender with PoC & Loop Out by Lindy
- Be the first to review
- Item Number: FD3542012
- Part Number: 38509
|
Ships in 12 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Extends HDMI & IR Signals up to 50m using a single Cat.6 Cable
- Supports resolutions up to Full HD 1080p
- Features a loop-through HDMI® output on the Transmitter for local monitoring
- Supports power over Cable, only a single power supply is required
See product description
Details
Specifications
- AV Interface: HDMI®
- Interface Standard: 1.3
- Supported Bandwidth: 4.95Gbps
- Maximum Distance: 50m (164.04ft)
- Maximum Resolution: 1920x1200@60Hz
- HDCP Support: HDCP 1.4
- EDID: pass-through
- Supported Audio: Up to 7.1 (pass-through)
- Separate Audio Ports: -
- IR Support: 20-60kHz
- CEC Support: -
- Serial Interface: -
- Transmission Protocol: -
- Transmission Medium: 1 x Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: GSV100T
- Special Features: PoC (Power over Cable), IR pass-through, Loop Out
Connectors
- Transmitter Input: HDMI® Type A (Female), 3.5mm IR (Female)
- Transmitter Output: HDMI® Type A (Female), RJ-45 (Female), 3.5mm IR (Female)
- Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Output: HDMI® Type A (Female), 3.5mm IR (Female)
- Bi-directional Ports: -
- Power: 5.5/2.1mm
Physical Properties
- Dimensions (approx.) WxDxH: 96x20x68mm (3.78x0.79x2.68in) each unit
- Housing Material: Metal
- Net Weight: 0.44kg (0.97lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 – 90% RH (no condensation)
- Power Requirements: 5VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 215x75x135mm (8.46x2.95x5.31in)
- Gross Weight: 0.61kg (1.34lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents
- Transmitter
- Receiver
- Multi-country Power Supply (UK, EU, US & AUS)
- IR Emitter cable, 1.5m
- IR Receiver cable, 1.5m
- Lindy Manual
Purchasing Information
- No.: 38509
- EAN: 4002888385091
Specifications
| MAXIMUM RESOLUTION | 1920 x 1200 pixels |
| CABLE TYPES | Cat5e, Cat6 |
| MAXIMUM TRANSFER DISTANCE | 50 m |
| SUPPORTED VIDEO MODES | 1080p |
| BANDWIDTH | 4.95 Gbit/s |
| MATERIAL | Metal |
| COLOUR | Black |
