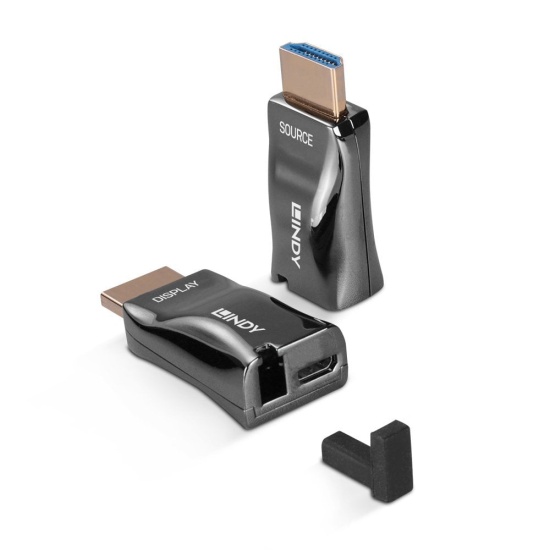

Lindy 300m Fibre Optic HDMI 4K60 Dongle Extender by Lindy
- Be the first to review
- Item Number: FD3541807
- Part Number: 38392
|
Ships in 11 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Extend HDMI® signals up to 300m using a single simplex LC OM3 or OM4 multi-mode cable
- Supports UHD resolutions up to 4K@60Hz 4:4:4 8Bit
- Experience an expanded range of contrasts and colours with HDR (High Dynamic Range)
- Supports lossless HDMI® audio formats including Dolby Atmos & DTS-X
See product description
Details
Specifications
- AV Interface: HDMI®
- Supported Bandwidth: 18Gbps as specified in 2.0 release
- Maximum Distance: 300m (984.24ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: Pass-through
- Supported Audio: Pass-through
- Transmission Medium: 1 x Simplex LC (50/125µm)
- Laser Class (only for Fibre): 1
- Wavelength (only for Fibre): 850nm
- Special Features: self-powered Tx, ARC & CEC supported
Connectors
- Transmitter Input: HDMI® Type A (Male)
- Transmitter Output: Simplex LC
- Receiver Input: Simplex LC
- Receiver Ouput: HDMI® Type A (Male)
- Power: USB Micro-B
Physical Properties
- Dimensions (approx.) WxDxH: 45x20x12mm (1.79x0.81x0.49in) per unit
- Housing Material: Aluminium
- Net Weight: 0.7Kg (1.45lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: Transmitter 0.9W (max), Receiver 0.2W (max)
- Colour: dark grey
Miscellaneous
- Packaging Type: Carton box
- Packaging Dimensions: 185x52x98mm (7.28x2.05x3.86in)
- Gross Weight: 0.9Kg (1.98lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Content
- Transmitter unit
- Receiver unit
- 2 x HDMI® Male/Female cable, 0.15m
- 2 x USB A/Micro-B cable, 1m
- 2 x LC port dust cover
- Lindy manual
Purchasing Information
- No.: 38392
- EAN: 4002888383929
Specifications
| MAXIMUM RESOLUTION | 3840 x 2160 pixels |
| MAXIMUM TRANSFER DISTANCE | 300 m |
| BANDWIDTH | 18 Gbit/s |
| MATERIAL | Aluminium |
| COLOUR | Dark Grey |
