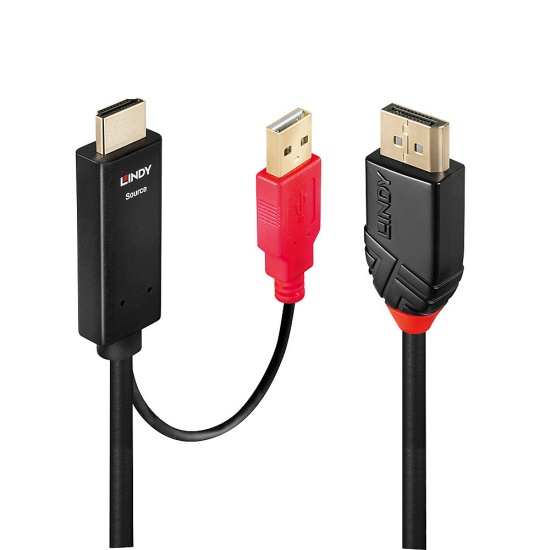

Lindy 5m HDMI to DisplayPort Cable by Lindy

Connectors

• Connector A: HDMI® Type A Male, USB Type A Male
• Connector B: DisplayPort A Male
• Housing Material: ABS
• Connector Plating: Gold 1µm
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold 15µm
• Dimensions (approx.) WxDxH:
  • HDMI®: 48x20.9x11.3mm (1.89x0.82x0.44in)
  • USB: 37.5x15.8x8mm (8x0.62x0.31in)
  • DisplayPort: 36.4x20x9.4mm (3x0.79x0.37in)

Cable Construction

• Length: 5m (16.44ft)
• Standard: DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Braid, 85%

Specifications

• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
• Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz <5dB
  • 2.475GHz-4.125GHz <12dB
  • 4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 55mm (2.17in)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 41428
• EAN: 4002888414289

This product is also available in other lengths

• 41424 - 0.5m 1.64ft)
• 41425 - 1m (3.28ft)
• 41426 - 2m (6.56ft)
• 41427 - 3m (9.84ft)
• 41428 - 5m (16.44ft)
