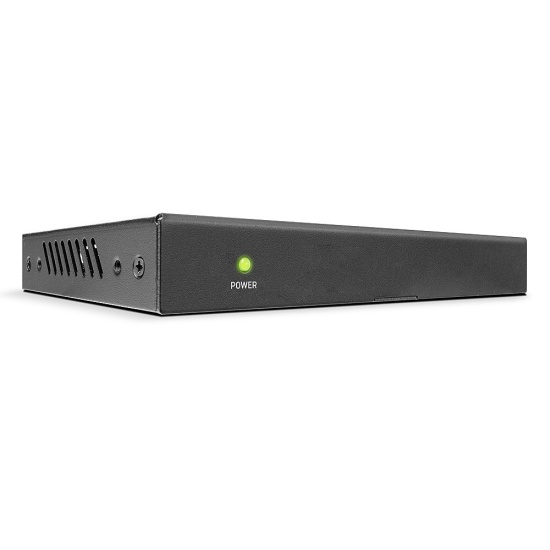

Lindy 70m C6 HDBaseT HDMI 18G & IR Extender Transmitter by Lindy
- Be the first to review
- Item Number: FD5300937
- Part Number: 38213
|
Ships in 13 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- RS-232 and CEC pass-through and bi-directional IR for simple control
- Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
See product description
Details
Specifications
- AV Interface: HDMI
- Interface Standard: 2.0
- Supported Bandwidth: 18Gbps
- Maximum Distance: 70m (229.66ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
- HDCP Support: 2.2
- EDID Pass Through: Pass-through
- Supported Audio: Pass-through
- Separate Audio Ports: -
- IR Support: 30-60kHz
- CEC Support: Pass-through
- Serial Interface: RS-232 Pass-through
- Transmission Protocol: HDBaseT
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS010
- Special Features:
Bi-directional IR
PoC (Power over Cat.6)
Connectors
- Transmitter Input: HDMI Type A (Female), IR (Female)
- Transmitter Output: RJ-45 (Female), IR (Female)
- Receiver Input: -
- Receiver Output: -
- Bi-directional Ports: IR (Female)
- Power: 5.5/2.1mm
Physical Properties
- Dimensions (approx.) WxDxH: 90x157x20mm (3.54x6.18x0.79in)
- Housing Material: Metal
- Net Weight: 0.345kg (0.76lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in)
- Gross Weight: 0.847kg (1.87lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
Package Content
- HDMI Transmitter
- Multi-country Power Supply (UK, EU, US & AUS)
- IR Emitter Cable, 1.5m
- IR Receiver cable, 1.5m
- Lindy Manual
Purchasing Information
- No.: 38213
- EAN: 4002888382137
Specifications
| MAXIMUM RESOLUTION | 3840 x 2160 pixels |
| CABLE TYPES | Cat6 |
| MAXIMUM TRANSFER DISTANCE | 70 m |
| BANDWIDTH | 18 Gbit/s |
| MATERIAL | Metal |
| COLOUR | Black |
