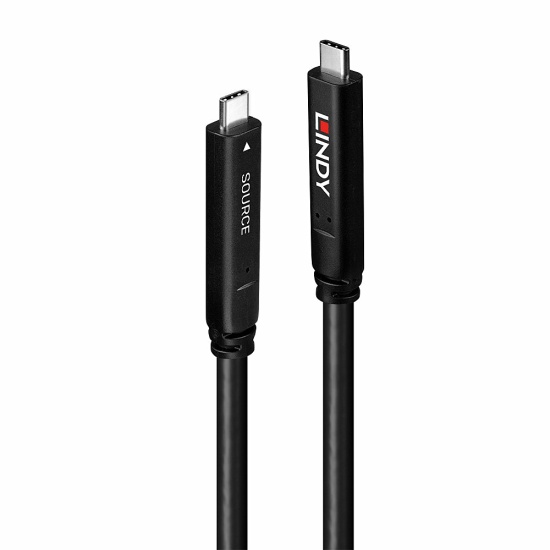

Lindy 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable by Lindy
- Be the first to review
- Item Number: FD3559639
- Part Number: 43398
|
Ships in 8 days Free shipping to Phoenix, AZ! Free returns for any reason |
.png){kind=logo}
Key Features
- 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
- Data transfer rates up to 5Gbps
- Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
- Supports Power Delivery up to 60W (20V 3A)
See product description
Similar Products
-
C2G 3M USB2.0 Type-A Male to Type-A Female Extension Cable Black
IN STOCK
$ 14.98 -
C2G 6FT USB Type-C Male to USB Type-B Male Cable - Black
IN STOCK
$ 18.89 -
Silicon Power USB-A to USB-C Cable 100cm White Boost Link PVC LK10AC
IN STOCK
$ 10.57 -
Tripp Lite 5FT USB-A Male to DB9 Male Serial Adapter Cable
IN STOCK
$ 29.47 -
Tripp Lite 6FT USB-C Male to DisplayPort Male Cable
IN STOCK
$ 44.81 -
C2G 10ft USB-C 3.0 to USB-A 3A Bi-directional Cable
IN STOCK
$ 29.94 -
3FT Tripp Lite USB Type A Male To USB Type A Female Extension Cable
IN STOCK
$ 10.51 -
StarTech 1ft USB2.0 Type-A to Micro USB Type-B Cable Black
IN STOCK
$ 13.61 -
Tripp Lite 10FT USB2.0 Hi-Speed USB-A Male to USB-A Female Extension Cable
IN STOCK
$ 11.33 -
Tripp Lite 6FT USB2.0 Hi-Speed USB-A Male to USB-B Male Cable with Ferrite Chokes
IN STOCK
$ 12.01 -
Tripp Lite 10FT Universal Reversible USB-A Male to USB-A Female Hi-Speed Extension Cable - Black
IN STOCK
$ 16.39 -
Startech 3ft Male to Male USB-C to DisplayPort Cable
IN STOCK
$ 17.66 -
6FT Tripp Lite USB-C Male to USB-C Male USB Cable - Black
IN STOCK
$ 17.51 -
C2G SuperSpeed 3.3FT USB Type-A Male to USB Type-B Male Cable - Black
IN STOCK
$ 21.02 -
C2G 10ft USB-C 2.0 5A Bi-directional Cable
IN STOCK
$ 31.69
Details
Connectors
- Connector A: USB Type C Male
- Connector B: USB Type C Male
- Power: PD 20V / 3A (60W)
- Housing Material: Plastic
- Connector Plating: Stainless Steel + Solder Nickel 50u" min.
- Pin Construction: Copper Alloy + Mating area Au
- Pin Plating: Mating area: 2µ" Au min.
- Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)
Cable Construction
- Length: 10m (32.81ft)
- Standard: USB 3.2 / 3.1 Gen 2
- Colour: Black
- Type: Round
- Jacket Diameter: 6.5mm (0.26in)
- Jacket Material: PVC
- Conductor Material: -
- Conductor Gauge: 21AWG*3 (Power)
- Shielding: Tinned Copper
Specifications
- Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
- Maximum Resolution: 4K 3840x2160@144Hz
- Nominal Attenuation: <10dB/km@850nm, <8dB/km@1300nm
- Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
- Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
- Operating Temperature: 5°C to 60°C (41°F - 140°F)
- Storage Temperature: -20°C to 80°C (-4°F - 176°F)
- Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
- Transmission Technology: 850nm Laser Optical
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
- Net Weight: 0.81kg (1.79lb)
- Gross Weight: 0.95kg (2.09lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Packaging Contents
- 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
- Lindy manual
Purchasing Information
- No.: 43398
- EAN: 4002888433983
Specifications
| LENGTH | 10 m |
| USB VERSION | USB 3.2 Gen 1 (3.1 Gen 1) |
| LEFT CONNECTOR | USB C |
| RIGHT CONNECTOR | USB C |
| DATA TRANSFER RATE | 5000 Mbit/s |
| COLOR | Black |
