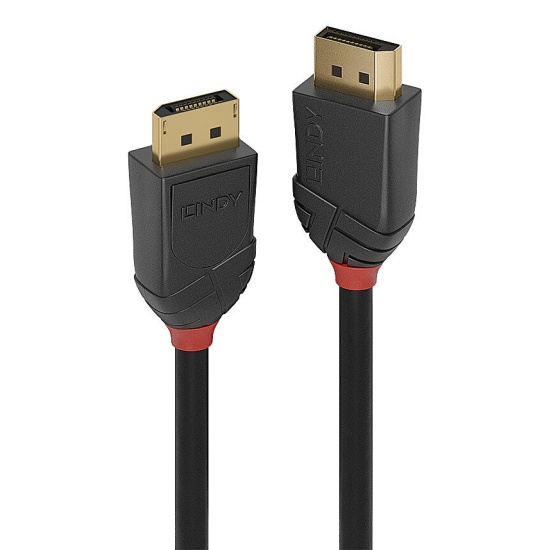

Lindy 36522 DisplayPort cable 3 m Black by Lindy

Connectors

• Connector A: DisplayPort Male
• Connector B: DisplayPort Male
• Housing Material: ABS
• Connector Plating: 24K Gold 15µm
• Pin Construction: Gold Plated
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20.7x42.6x13mm (0.81x1.68x0.51in)

Cable Construction

• Length: 3m (9.84ft)
• Standard: DisplayPort 2.1
• Colour: Black
• Type: Round
• Jacket Diameter: 7mm (0.27in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 30 AWG
• Shielding: Aluminium Mylar

Specifications

• Supported Bandwidth: 80Gbps
• Maximum Resolution: 16360 x 8640 (16K) @ 60Hz, 4:4:4, 10-bit
• Nominal Attenuation:
  • 100 MHz - 450 MHz < 5.1 dB
  • 450 MHz - 8100 MHz  < 33.28 dB
  • 8100 MHz - 13500 MHz < 38.0 dB
• Minumum Band Radius: 48mm (1.89in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No.: 36522
• EAN: 4002888365222

This product is also available in other lengths

• 36520 - 1m (3.28ft)
• 36521 - 2m (6.56ft)
• 36522 - 3m (9.84ft)
