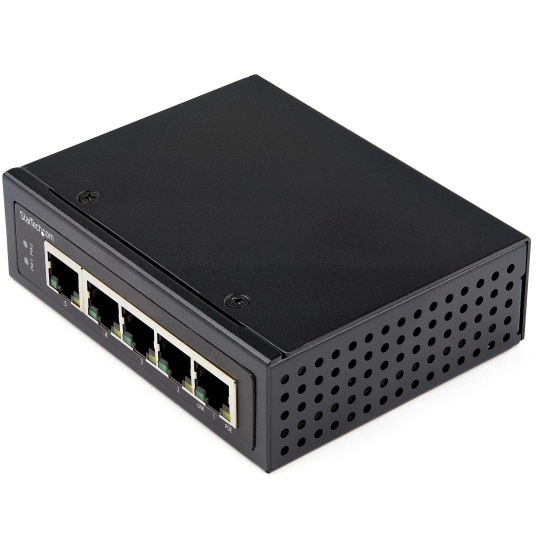

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C - TAA by StarTech
- Be the first to review
- Item Number: FD2614350
- Part Number: IESC1G50UP
|
Ships in 6 days Free shipping to Phoenix, AZ! Free returns for any reason |
.png){kind=logo}
Key Features
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) / Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged industrial IP-30 aluminum housing / -40C to 75C hardened operating temp / DIN/Wall Mount
- TECH SPECS: 5 Port GbE Switch / 4 PoE ports / IEEE 802.3af / IEEE 802.3at / 10/100/1000 Mbps / Unmanaged / Redundant Power Input / Terminal Block Power / Total power budget: 120W
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
See product description
Similar Products
-
D-Link 5-Port Gigabit Unmanaged Switch
IN STOCK
$ 37.93 -
D-Link 24-port Gigabit Stackable Smart Managed Switch with 10G Uplinks
IN STOCK
$ 514.32 -
TP-Link 5-Port Gigabit Easy Smart Ethernet Switch
IN STOCK
$ 33.35 -
Ubiquiti UniFi 24 Port Managed L2/L3 Gigabit Ethernet (PoE) Switch - Silver
IN STOCK
$ 611.96 -
D-Link 52-Port Gigabit Smart Managed Switch
IN STOCK
$ 459.74 -
C2G 4K HDMI VGA Mini DisplayPort USB C Adapter Switch
IN STOCK
$ 170.50 -
Ubiquiti Networks UniFi Pro 24-Port (PoE) Managed L2/L3 Gigabit Ethernet Switch
IN STOCK
$ 1,138.11 -
Ubiquiti UniFi 48 Port Managed L2 Gigabit Ethernet Switch - Silver
IN STOCK
$ 603.65 -
D-Link 10-Port Gigabit Smart PoE Managed Switch
IN STOCK
$ 246.25 -
Ubiquiti EdgeSwitch 24-port 250W (PoE) Managed L2/L3 Gigabit Ethernet Switch
IN STOCK
$ 627.60 -
Ubiquiti Networks UniFi Pro 48-Port (PoE) Managed L2/L3 Gigabit Ethernet Switch
IN STOCK
$ 1,917.31 -
Ubiquiti Networks UniFi Switch Lite 16-port PoE Gigabit Ethernet Switch
IN STOCK
$ 334.55
Details
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
• Cameras
• Sensors
• Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
• Operating Temperature Range: -40 C to 75 C
• IP-30 rated housing
• Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C; for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
• Cameras
• Sensors
• Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
• Operating Temperature Range: -40 C to 75 C
• IP-30 rated housing
• Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C; for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
Specifications
| NUMBER OF PORTS | 5 |
| PRIMARY PORT SPEED | Gigabit Ethernet (10/100/1000) |
| NETWORKING STANDARDS | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| OPERATING TEMPERATURE | -40 - 75 °C |
| COLOR | Black |
| DIMENSIONS | 81.5 mm |
