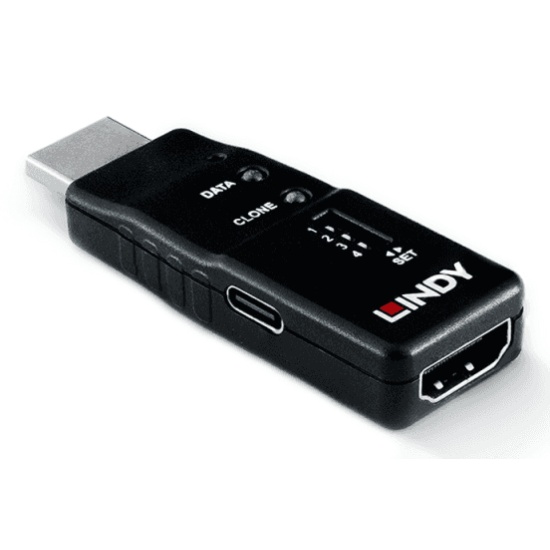

Lindy 32105 EDID emulator by Lindy
- Be the first to review
- Item Number: FD10390544
- Part Number: 32105
|
Ships in 5 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Continuously emulates HDMI® EDID information
- Supports resolutions up to 7680x4320@60Hz or 3840x2160@120Hz with additional support for HDR
- Used cloned data in up to 8 pre-stored resolutions/timings
- Headless connection (no monitor connection required)
Details
Specification
- AV Interface: HDMI®
- Interface Standard: 2.1
- Supported Bandwidth: 48Gbps
- Maximum Resolution: 7680x4320@60Hz 4:4:4 10Bit
- Audio EDID: Sample size : 16 to 24 bits, sample rates : 32kHz up to 192kHz.
- HDCP Support: HDCP 2.3
- Special Features: Headless connection (No Monitor connection required)
Connectors
- Input: HDMI® Male
- Output: HDMI® Female
- Power: Via HDMI® source Interface
- Data: USB-C
Physical Properties
- Dimensions WxDxH: 64.5 x 22.5 x 11mm (2.53 x 0.88 x 0.43in)
- Housing Material: ABS
- Net Weight: 0.013Kg (0.028lb)
- Operating Temperature: 0°C - 50°C (°32F - °122F)
- Storage Temperature: -20°C - 70°C (°-4F - °158F)
- Humidity: 0-80% RH (non-condensing)
- Colour: Black
Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 136 x 146mm (5.35 x 5.74in)
- Gross Weight: 0.036Kg (0.079lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS & REACH
Package Contents
- EDID Emulator
- Lindy Manual
Purchasing Information
- No.: 32105
- EAN: 4002888321051
