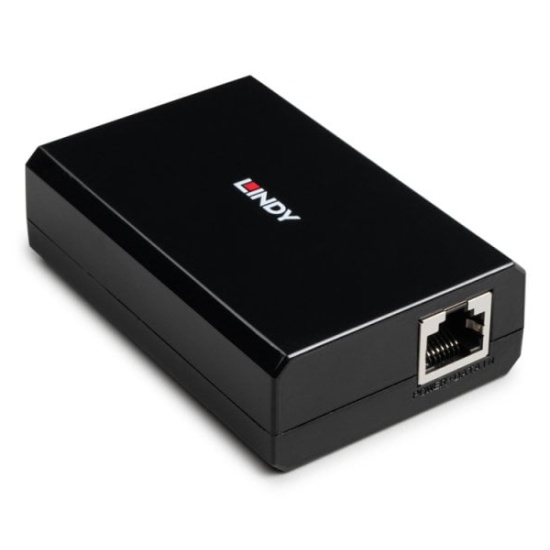

Lindy 73474 network splitter Power over Ethernet (PoE) Black by Lindy
- Be the first to review
- Item Number: FD10607546
- Part Number: 73474
|
Ships in 11 days Free shipping to Phoenix, AZ! Free returns for any reason |
Key Features
- Splits data and power from a PoE connection
- Type C output with max power up to 45W
- 10/100/1000Mbps Gigabit Ethernet
- Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt PoE standards
See product description
Details
Connectors
- Input: RJ45 (Female) PoE Data + Power
- Ouput: RJ45 (Female) Gigabit only for data, USB Type C (Female) only for power
Specifications
- Power Input: 60W PoE (Ultra PoE++ IEEE802.3bt), 30W PoE (High Power PoE+ IEEE802.3at), 15W PoE (IEEE802.3af)
- Power Output: up to 45W
- USB Power Delivery: Yes
- Output Voltage: 5V/3.4A, 9VDC/3A, 12VDC/3A, 15V/3A and 20V/2.25A
- Ethernet Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Pass Through Data Rates: 10/100/1000 Mbps
- Device Power Consumption: <0.1W
- Additional Features: over voltage, over current, short circuit and over temperature protection
Physical Properties
- Dimensions (approx.) WxDxH: 80x54x24mm (3.15x2.13x0.94in)
- Housing Material: Plastic
- Net Weight: 0.085Kg (0.19lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
Operating Humidity: 90% RH (non-condensing)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
- Storage Humidity: 95% RH (non-condensing)
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 150x80x25mm (5.91x3.15x0.98in)
- Gross Weight: 0.11Kg (0.24lb)
- Warranty (Years): 2
- Product Compliance: CE, RoHS, REACH
Package Contents
- PoE to Type C Splitter Converter
- Lindy Manual
Purchasing Information
- No.: 73474
- EAN: 4002888734745
Specifications
| NUMBER OF PORTS | 2 |
| COLOR | Black |
| PORTS | 2 |
| WEIGHT | 85 g |
