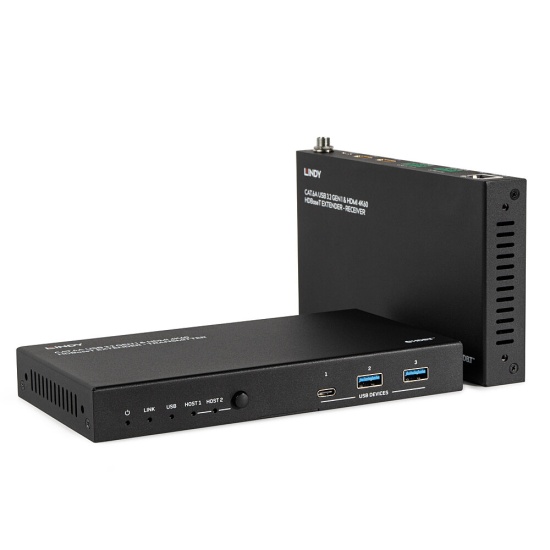

Lindy 100m Cat.6A 2 Host USB 3.2 Gen 1 & HDMI 4K60 HDBaseT Extender by Lindy
- Be the first to review
- Item Number: FD3587657
- Part Number: 39365
|
Ships in 13 days Free shipping to New York, NY! Free returns for any reason |
Key Features
- Extend USB 3.2 Gen 1 and AV signals from 2 Type C hosts up to 100m using Cat.6A network cable (not included)
- Type C Power Delivery 100W port on the Tx, DisplayLink technology for video over USB on dual HDMI® 4K60 outputs on the Rx
- Power over Cable requires a single power supply to be connected to the transmitter or receiver only
- Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232, APIs, Audio and FSYNC pass-through ports
See product description
Details
Specifications
- AV Interface: HDMI®
- Interface Standard: 2.0, USB 3.2 Gen 1
- Supported Bandwidth: HDMI® 18Gbps, USB 5Gbps
- Maximum Distance: 100m (328.08ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through
- Supported Audio: Pass Through
- Separate Audio Ports: 5-pin terminal block
- IR Support: -
- CEC Support: Pass Through
- Serial Interface: RS-232 Pass Through
- Transmission Protocol: HDBaseT USB 3
- Transmission Medium: Cat.6A
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS6320, DisplayLink
- Special Features: APIs, 100W PD on one Type C port, PoC (Power over Cable), Audio de-embedded, FSYNC, bulk, interrupt and isochronous USB data transfer
Connectors
- Transmitter Input: 2 x USB Type C (Female), USB Type C only for power (Female)
- Transmitter Output: RJ45 (Female), Type C (Female), 2 x Type A (Female)
- Receiver Input: RJ45 (Female)
- Receiver Output: 2 x HDMI® (Female), Type C (Female), 2 x USB Type A (Female), Audio 5-Pin Terminal Block
- Control Ports: Type C (Female), RS-232 4-Pin Terminal Block
- Power: 5.5/2.1mm DC socket
Physical Properties
- Dimensions WxDxH: 180x95x23mm (7.09x3.74x0.91in) each unit
- Housing Material: Metal
- Net Weight: 2.05kg (4.52lb)
- Operating Temperature: 0° - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 10 - 90% RH (non-condensing)
- Power Requirements: 24VDC 3.75A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 260x85x252mm (10.24x3.35x9.92in)
- Gross Weight: 2.38kg (5.25lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65
Package Contents
- Transmitter unit
- Receiver unit
- 2 x 4-Pin Terminal Block
- 5-Pin Terminal Block
- Multi-Country Power Supply (EU, UK, US & AUS)
- Mounting brackets & screws
- Lindy Manual
Purchasing Information
- No.: 39365
- EAN: 4002888393652
Specifications
| DATA TRANSFER SPEED | 480 Mbit/s |
| TEMPERATURE RANGES | 0 - 40 °C |
| HUMIDITY RANGES | 10 - 90% |
| COLOR | Black |
