Lindy HDMI, KVM & IR over IP Extender by Lindy

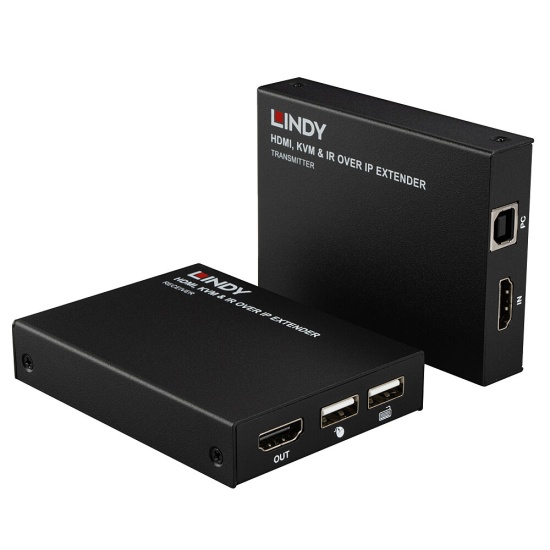

Lindy HDMI, KVM & IR over IP Extender Image

100+ IN STOCK
$244.63 No sales tax on NY orders
Ships in 13 days
Free shipping to New York, NY!
Free returns for any reason
Add accidental protection from

Key Features

  • Distribute HDMI® and USB signals 1-1 or 1-many as part of a networked installation
  • Supports resolutions up to 1920x1080@60Hz
  • Supports IR and HDMI® loop-out port on the transmitter
  • Add additional receivers to the network for larger scale distribution
  • 2 year warranty
See product description

Similar Products

Details

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 1.3, USB 1.1
  • Supported Bandwidth: 6.75 Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.4
  • EDID Pass Through: -
  • Supported Audio: 2 Channel PCM
  • Separate Audio Ports: -
  • IR Support: 20-60 kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: IP (H.265 video compression)
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: SSC337DE - SSD203D
  • Special Features: HDMI® Loop Out port

Connectors

  • Transmitter Input: HDMI® (Female), USB Type B (Female)
  • Transmitter Output: HDMI® (Female), RJ45 (Female), IR (Female)
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Output: HDMI® (Female), 2 x USB Type A (Female)
  • Bidirectional Ports: -
  • Power: 5.5/2.1mm DC socket

Physical Properties

  • Dimensions WxHxD: 91.6x67x17.5mm (3.61x2.64x0.69in) per unit
  • Housing Material: Metal
  • Net Weight: 0.40kg (0.88lb)
  • Operating Temperature: -10°C - 50°C (14°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 213x137x79mm (8.39x5.39x3.11in)
  • Gross Weight: 0.90kg (1.98lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • Transmitter unit
  • Receiver unit
  • USB Type A / B cable, 1.5m
  • IR emitter cable, 1.5m
  • IR receiver cable, 1.5m
  • 2x Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual

Purchasing Information

  • No. 39320
  • EAN: 4002888393201
