Lindy 36502 HDMI cable 1 m HDMI Type A (Standard) Black by Lindy

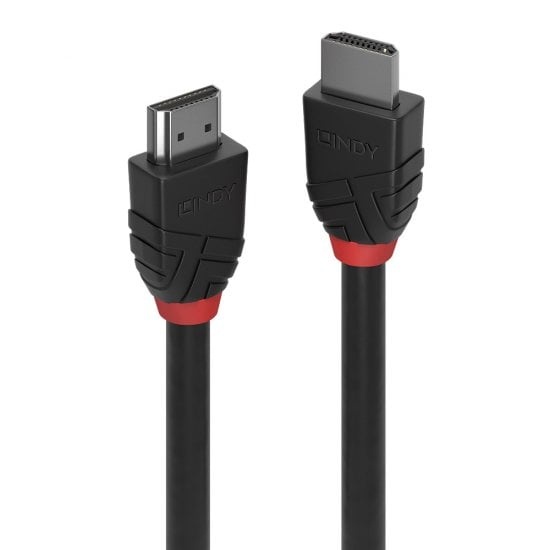

Lindy 36502 HDMI cable 1 m HDMI Type A (Standard) Black Image

100+ IN STOCK
$13.63 No sales tax on AZ orders
Ships in 7 days
Free shipping to Phoenix, AZ!
Free returns for any reason
Add accidental protection from

Key Features

  • Supports UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit
  • Minimises toxic emissions with LSZH (Low Smoke Zero Halogen) jacket
  • Double shielded cable, 30AWG Copper
  • Supports 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio
See full specifications
See product description


Details

Connectors

  • Connector A: HDMI® Type A Male
  • Connector B: HDMI® Type A Male
  • Housing material: LSZH PVC
  • Connector plating: Gold Plating
  • Pin construction: Copper Alloy
  • Pin Plating: Gold Plated
  • Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x 1.40 x 0.41in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: High Speed HDMI®
  • Colour: Black
  • Type: Round
  • Jacket diameter: 5.5mm (0.21in)
  • Jacket material: LSZH PVC
  • Conductor material: Bare Copper
  • Conductor gauge: 30AWG
  • Shielding: Aluminum Foil
  • Braid Shielding: Aluminum-Magnesium

Technical Information

  • Supported bandwidth: 18Gbps
  • Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
  • Nominal attenuation:
    • 300kHz~825MHz<5dB
    • 825MHz~2.475GHz<5dB
    • 2.475GHz~4.125GHz<12dB
    • 4.125GHz~5.1GHz<20dB
  • Minimum bend radius: 60mm (2.36in)
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • ATC Approved: No

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS & REACH, California Proposition 65

Purchasing Information

  • No.: 36502
  • EAN: 4002888365024

This product is also available in other lengths

  • 36501 - 0.5m (1.64ft)
  • 36502 - 1m (3.28ft)
  • 36503 - 2m (6.56ft)
  • 36504 - 3m (9.84ft)
  • 36505 - 5m (16.44ft)
  • 36506 - 7.5m (24.60ft)
  • 36507 - 10m (32.80ft)
Specifications
LENGTH 1 m
CONNECTORS HDMI Type A (Standard)
CONTACTS PLATING Gold
COLOR Black
