Digitus CAT 5e SF/UTP twisted pair patch cord, raw by Digitus

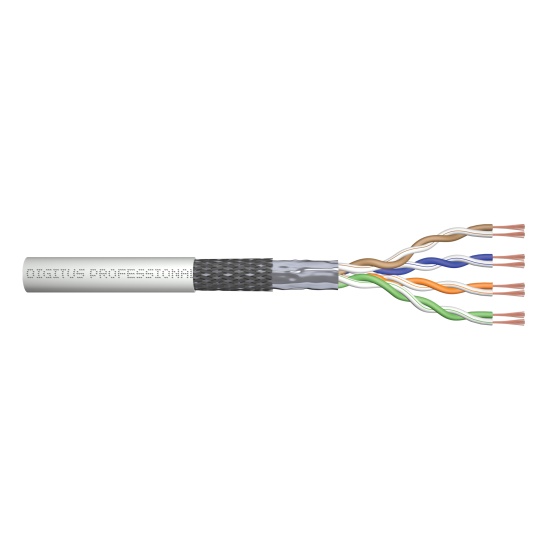

Digitus CAT 5e SF/UTP twisted pair patch cord, raw Image
1 IN STOCK
$298.90 No sales tax on NY orders
Ships in 8 days
Free shipping to New York, NY!
Free returns for any reason
Add accidental protection from

Key Features

  • Insulation: HD-PE
  • Outer sheath diameter: 0.55 mm nominal
  • Overall diameter: 5.6 mm nominal
  • Tensile loading: 150 N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -10 °C up to +75 °C
  • Operating temperature range: -10 °C up to +60 °C
  • Installation temperature range: 0 °C up to +50 °C
  • DC loop resistance: ≤ 280 Ω km
  • Resistance unbalance ≤ 2%
  • Insulation resistance: ≥ 2000MΩ/km @500V
  • Capacitance: nom. 48 nF/km @ 800 Hz
  • Capacitance unbalance (pair-ground): ≤ 1500 nF/km
  • Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz
  • NVP: 67%
  • Propagation delay: nom. ≤ 555 ns/100 m
  • Delay skew: nom. ≤ 50 ns/ 100 m
  • Test voltage (DC 1 min) core/core: 1000V
  • Coupling attenuation: ≥ 40 dB
  • Capacitance: 48 pF/m nominal @ 800 Hz
  • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
  • Insulation resistance: 2 GOhm x km min.
  • DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: 40 dB
  • Signal propagation delay: 450 nS/100 m max.
  • Propagation delay: 20 nS/100 m max.
See full specifications
See product description

Similar Products

Details
Future-oriented standards and high-end quality for your network.

- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class D cable lines, 100 MHz
- According to the norms ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1
- Conductor: Copper (Cu)
- PoE ready

The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
Specifications
TYPE Cat5e
LENGTH 305 m
LEFT CONNECTOR No
RIGHT CONNECTOR No
CABLE SHIELDING SF/UTP (S-FTP)
MATERIAL Polyvinyl chloride (PVC)
