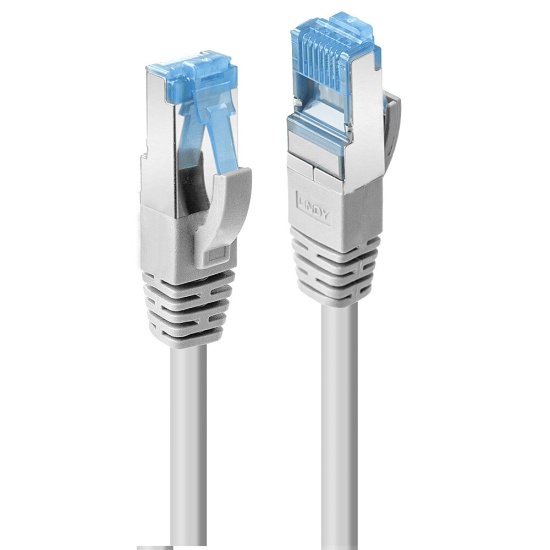

Lindy 70m Cat.6A S/FTP LSZH Cable, Grey by Lindy

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Length: 70m (231.95ft)
• Colour: Grey
• Type: Cat.6A
• Jacket Diameter: 6.0mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 27AWG
• Shielding: Aluminium Braid

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 72mm (2.84in)
• Operating Temperature: -10°C - 60°C (14F - 140°F)
• Storage Temperature: -20°C - 75°C (-4F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No.: 47143
• EAN: 4002888471435

This product is also available in other lengths:

• 47130 - 0.3m (0.98ft)
• 47131 - 0.5m (1.64ft)
• 47132 - 1m (3.28ft)
• 47133 - 1.5m (4.92ft)
• 47134 - 2m (6.56ft)
• 47135 - 3m (9.84ft)
• 47136 - 5m (16.44ft)
• 47137 - 7.5m (24.61ft)
• 47138 - 10m (32.81ft)
• 47139 - 15m (49.21ft)
• 47140 - 20m (65.62ft)
• 47141 - 30m (98.43ft)
• 47142 - 50m (165.68ft)
• 47143 - 70m (231.95ft)
• 47144 - 100m (328.41ft)
