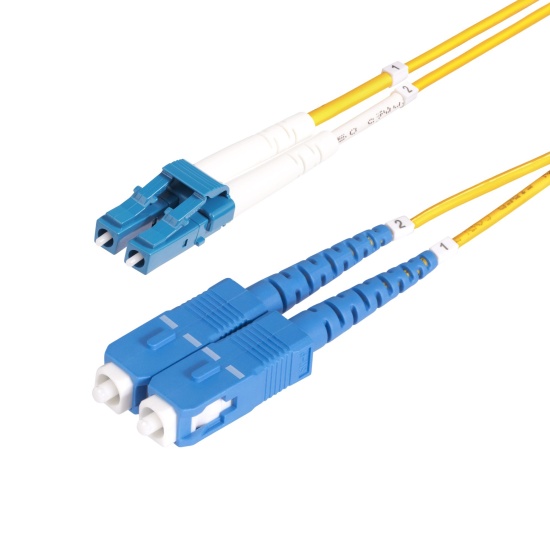

StarTech.com 3m (9.8ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord by StarTech
- Be the first to review
- Item Number: FD3361529
- Part Number: SMLCSC-OS2-3M
| 100+ IN STOCK |
$35.26
No sales tax on AZ orders
|
Ships in 7 days Free shipping to Phoenix, AZ! Free returns for any reason |
.png){kind=logo}
Key Features
- OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
- QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Numbered connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
- SPECS: 3m (9.8 foot); OS2 Single Mode; LC/SC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
See product description
Similar Products
-
C2G Shielded Snagless Cat6 Ethernet Network Cable - Black - 35ft
IN STOCK
$ 41.99 -
Tripp Lite 0.5FT RJ45 Male to RJ45 Male Premium Cat6 Gigabit Snagless Molded UTP Patch Cable - White
IN STOCK
$ 10.35 -
Cat6 RJ45 UTP Flat Network Cable / Patch Cable (Grey) 20m
IN STOCK
$ 19.45 -
Tripp Lite 6FT RJ45 Male Cat5e 350MHz Snagless Molded Patch Cable - Black
IN STOCK
$ 10.16 -
Tripp Lite 25FT RJ45 Male Cat6 Gigabit Snagless Molded UTP Patch Cable - Red
IN STOCK
$ 22.40 -
Lindy U/UTP Cat6 RJ45 Patch Cable 2m – White
IN STOCK
$ 11.34 -
Lindy U/UTP Cat6 RJ45 Patch Cable 0.5m – Grey
IN STOCK
$ 9.06 -
C2G Unshielded Snagless Cat5e Ethernet Network Cable - Gray - 14ft
IN STOCK
$ 13.81 -
C2G Cat6 2ft Snagless Unshielded Networking Patch Ethernet Cable - Blue
IN STOCK
$ 11.49 -
Tripp Lite 6FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - Yellow
IN STOCK
$ 10.55 -
Startech 10ft DB9 Female to DB9 Male Network Cable
IN STOCK
$ 16.18 -
Tripp Lite 10FT RJ45 Male to RJ45 Male Cat6 UTP Snagless Molded Slim Patch Cable - Grey
IN STOCK
$ 12.76 -
Lindy U/UTP Cat6 RJ45 Patch Cable 0.3m – Grey
IN STOCK
$ 8.24 -
Tripp Lite 3FT Cat6 RJ45 Male Gigabit Snagless Molded UTP Patch Cable - Black
IN STOCK
$ 10.80 -
1.5FT C2G RJ-45 Male To RJ-45 Male Cat6 Snagless Unshielded Ethernet Patch Cable - Gray
IN STOCK
$ 11.71
Details
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
OS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
OS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
Specifications
| LENGTH | 3 m |
| LENGTH | 3 m |
| LEFT CONNECTOR | LC |
| LEFT CONNECTOR | LC |
| RIGHT CONNECTOR | SC |
| RIGHT CONNECTOR | SC |
| MATERIAL | Low smoke zero halogen (LSZH), Polypropylene |
| MATERIAL | Low smoke zero halogen (LSZH), Polypropylene |
