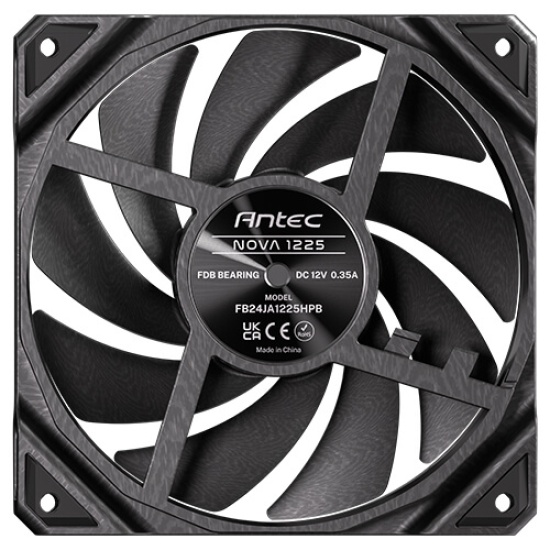

Antec Nova Computer case Fan 12 cm Black 1 pc(s) by Antec
- Be the first to review
- Item Number: FD3609974
- Part Number: 0-761345-40050-3
| 9 IN STOCK |
$39.75
No sales tax on NY orders
|
Ships in 10 days Free shipping to New York, NY! Free returns for any reason |
.png){kind=logo}
Key Features
- Computer case Fan 12 cm
- 95.32 cfm 6.56 mmH2O Fluid Dynamic Bearing (FDB)
- Pulse-width modulation (PWM) support
- 120 x 25 x 120 mm
- Black
- 1 pc(s)
See product description
Similar Products
-
Noctua Chromax Black Swap 140x150x25mm 1500RPM Computer Case Fan w/Anti-Vibration Pads
IN STOCK
$ 46.00 -
Noctua NF-A4x20 40mm 5000RPM Case Fan - Beige, Brown
IN STOCK
$ 31.36 -
Noctua Chromax Black Swap 140mm 1500RPM Computer Case Fan w/Anti-Vibration Pads
IN STOCK
$ 47.66 -
Noiseblocker Black Silent Pro P-P 80mm Computer Case Fan
IN STOCK
$ 31.03 -
Noctua 120mm 1850RPM PWM Computer Case Fan
IN STOCK
$ 42.94 -
Noiseblocker Black Silent Pro PL-PS 120mm Computer Case Fan
IN STOCK
$ 33.77 -
Noctua 140mm 900RPM Computer Case Fan
IN STOCK
$ 35.34 -
Noiseblocker NB-eLoop B14-3 1400RPM 140mm Case Fan
IN STOCK
$ 34.42 -
StarTech 60MM TX3 Ball Bearing Computer Case Fan
IN STOCK
$ 27.02 -
Noctua 120mm 900RPM Computer Case Fan
IN STOCK
$ 28.72 -
Noiseblocker Black Silent XR-1 60mm Computer Case Fan
IN STOCK
$ 15.03 -
Noctua Chromax Black Swap 92mm 2500RPM PWM Computer Case Fan w/Anti-Vibration Pads
IN STOCK
$ 36.93 -
Noiseblocker Black Silent XE-2 92mm Computer Case Fan - Blue
IN STOCK
$ 41.14 -
Noctua Chromax Black Swap 120mm 1200RPM Computer Case Fan w/Anti-Vibration Pads
IN STOCK
$ 71.46 -
Noctua 120mm 2000RPM PWM Computer Case Fan
IN STOCK
$ 53.77
Details
PWM 3-Phase Speed Controller
Included three-phase PWM speed controller allows you to switch modes according to different hardware environments and scenarios. Under all 3 modes Nova is able to stop operating when PWM signal is below 6%.
P-Q curve
Three-Phase Six-Pole Drive Motor
- Greater output power and torque. Fully utilizes electrical energy, reducing energy loss.
- Better starting performance. Capable of quick start-up and reaching rated speed, improving operational efficiency.
- Less noise and vibration. Reduces mechanical friction and electromagnetic interference, decreasing noise and vibration.
- Precise PWM closed-loop design. Designed with speed compensation function, unaffected by air resistance, enhancing heat dissipation efficiency.
Metal Shaft
- Enhances structural strength.
- Improves reliability and durability.
- Superior dynamic balance.
Neodymium Magnet
A strong neodymium magnet is placed at the bottom of the fan frame, perpendicular to the shaft. This magnetic structure effectively mitigates displacement due to centrifugal force during high-speed operation, thereby reducing fan vibration and ensuring more stable fan operation.
Dustproof Design
Dust-proof structure encloses the internal drive components, preventing entrance of dust or debris corroding electronic components inside, thus extending the lifespan of the fan.
Exterior Geometric Ribs
Overall structural enhancement strengthens the fan frame rigidity and reduces resonance.
Recessed design at the four corners
The contact area between the fan frame and the corner is only 7mm wide, reducing by 72%, which significantly reduces resonance and noise.
Vibration-Absorbing & Anti-Noise Pads
8 anti-vibration rubber pads efficiently reduce vibration and noise.
Hexadecagon Fan Frame
Extremely Minimal Fan Blade Clearance
The clearance between fan frame and blades is minimized to 0.5 ± 0.1mm to increase the effective cooling area, avoids fan backflow and enhances air pressure.
9 Curved Blade for Optimized Aerodynamics
CFD (Computational Fluid Dynamics) numerical fan blade design optimizes geometry and improves fan efficiency and airflow.
Industrial-Grade LCP Material
Entire fan (blades + frame) is made of strong Liquid Crystal Polymer.
- Excellent heat dissipation performance.
- Low noise.
- High durability.
FDB Bearing
PWM Sharing Technology
Control multiple fans all together via only one connection.
The way to Daisy Chain
Included three-phase PWM speed controller allows you to switch modes according to different hardware environments and scenarios. Under all 3 modes Nova is able to stop operating when PWM signal is below 6%.
P-Q curve
Three-Phase Six-Pole Drive Motor
- Greater output power and torque. Fully utilizes electrical energy, reducing energy loss.
- Better starting performance. Capable of quick start-up and reaching rated speed, improving operational efficiency.
- Less noise and vibration. Reduces mechanical friction and electromagnetic interference, decreasing noise and vibration.
- Precise PWM closed-loop design. Designed with speed compensation function, unaffected by air resistance, enhancing heat dissipation efficiency.
Metal Shaft
- Enhances structural strength.
- Improves reliability and durability.
- Superior dynamic balance.
Neodymium Magnet
A strong neodymium magnet is placed at the bottom of the fan frame, perpendicular to the shaft. This magnetic structure effectively mitigates displacement due to centrifugal force during high-speed operation, thereby reducing fan vibration and ensuring more stable fan operation.
Dustproof Design
Dust-proof structure encloses the internal drive components, preventing entrance of dust or debris corroding electronic components inside, thus extending the lifespan of the fan.
Exterior Geometric Ribs
Overall structural enhancement strengthens the fan frame rigidity and reduces resonance.
Recessed design at the four corners
The contact area between the fan frame and the corner is only 7mm wide, reducing by 72%, which significantly reduces resonance and noise.
Vibration-Absorbing & Anti-Noise Pads
8 anti-vibration rubber pads efficiently reduce vibration and noise.
Hexadecagon Fan Frame
Extremely Minimal Fan Blade Clearance
The clearance between fan frame and blades is minimized to 0.5 ± 0.1mm to increase the effective cooling area, avoids fan backflow and enhances air pressure.
9 Curved Blade for Optimized Aerodynamics
CFD (Computational Fluid Dynamics) numerical fan blade design optimizes geometry and improves fan efficiency and airflow.
Industrial-Grade LCP Material
Entire fan (blades + frame) is made of strong Liquid Crystal Polymer.
- Excellent heat dissipation performance.
- Low noise.
- High durability.
FDB Bearing
PWM Sharing Technology
Control multiple fans all together via only one connection.
The way to Daisy Chain
Specifications
| FAN DIAMETER | 12 cm |
| QUANTITY | 1 pc(s) |
| AIRFLOW | 95.32 cfm |
| CONNECTOR | 4-pin |
| COLOR | Black |
| DIMENSIONS | 120 x 25 x 120 mm |
